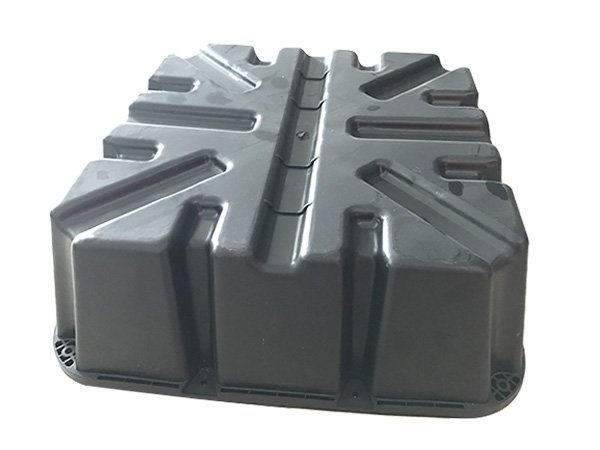

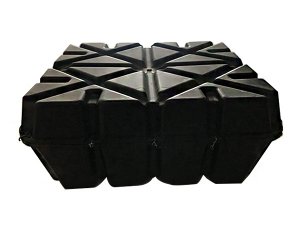

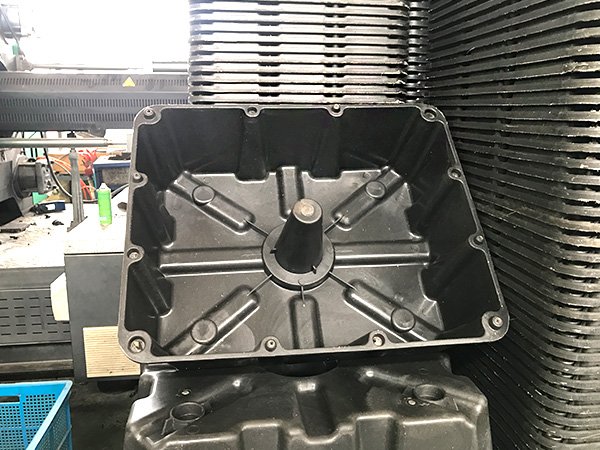

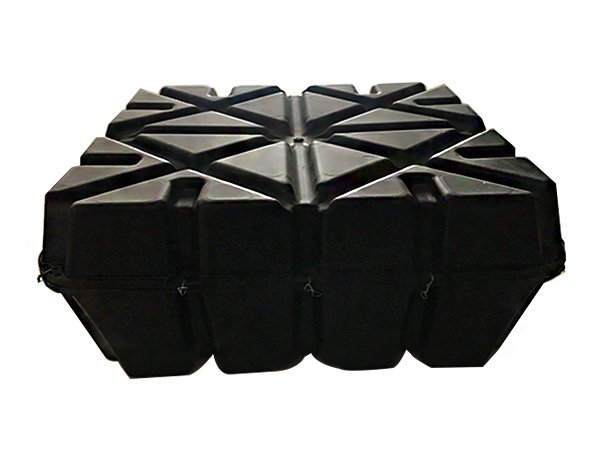

U Boot Plastic Structural box (Sbox ) is the formwork products made of recycled polypropylene and placed in the reinforced concrete slab. These products are also know with the name Self-supporting core mold. Use Plastic Structural box (Sbox ) to form the large span slab with the flat bottom surface without beams. With the use of Plastic Structural box (Sbox ), the concrete volume of the slab will be significantly reduced and consequently the load on the foundation will be decreased respectively.
The installation of Plastic Structural box (Sbox ) is simple and quick in association with the construction of flat formwork in a simple manner will help the slab construction quicker than those of the bidirectional beams.
It is used in all applications that required a plate structural solution, along with concrete-saving and therefore weight-savings.In tower buildings, weight-saving at every floor reduces load on foundations. The fact of avoiding beams being out of the slab thickness, enables the reduction of height for each floor. Therefore, a higher number of floors can be built. By using U Boot Plastic Structural box (Sbox ) , it is possible to build thick raft foundations with a reduced quantity of concrete( and weight). It is the ideal solution to create slabs of big spans and /or with a high bearing capacity. In case of difficult access to the building site or restructuring, U Boot Plastic Structural box (Sbox ) permits to build up the horizontal structures without using lifting and movement devices, because of its stackability , modularity , lightness and manageability. The U Boot Plastic Structural box (Sbox ) system particularly fits structures that need significant open spaces, like bureaus, industrial and commercial buildings and civil constructions as well. The system also allows a more irregular of pillars, since beams are not necessary.
Advantages in short
Light-Thin-Bidirectional
Designed for bidirectional slabs
Decrease of concrete and weight up to 40%
Reduced deformation (maximum stiffness loss 15%)
Reduce of Load on Fundations
Reduction of Pillar Section
Flexible
Spans up to 20m
Absence of beams between pillars
Reduction of pillars number
possible use with prefabricated slabs
No lifting and movement devices required, ideal for restructuring
Possible creation of monodirectional slabs thanks to the "bridge" accessory
Antiseismic
Reduced seismic mass
Less dimensional limitations of elements
Double inferior and superior slab
Open Spaces
More spacious rooms
Bigger architectureal freedom
Easier change of use
Economic
Less concrete incidence, thickness being equal
Less steel incidence
Usable height saving on each floor
Rapidity and easiness of pose
possibility of big spans, load being equal
Possibility of high bearing capacity, spans being equal

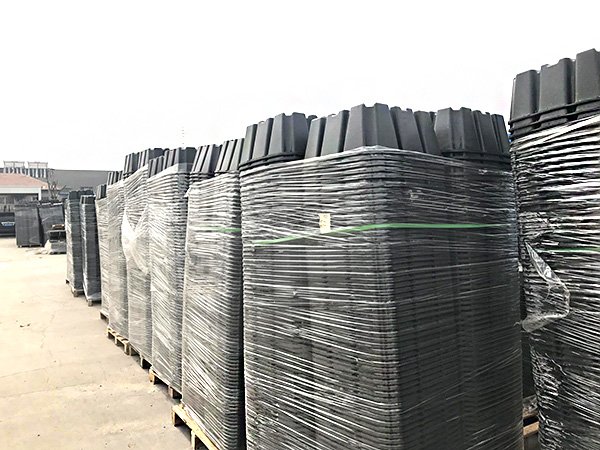

Economical transport and easy stocking
Ready to smooth once the deck is taken off
Safe
significant fire resistance
Safety on building site

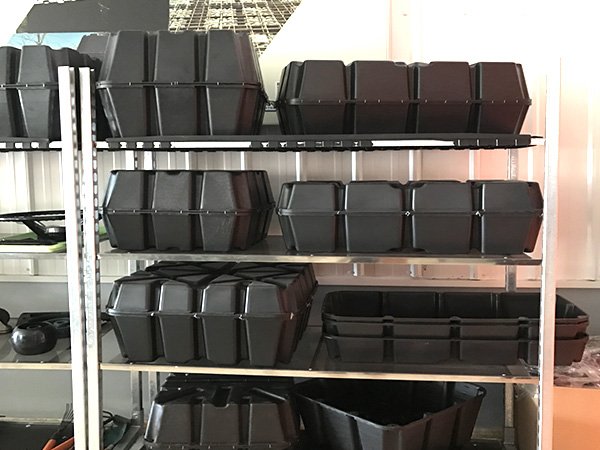

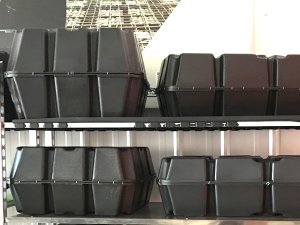

Size:475*475*115mm Weight: 1350g | Size:475*475*165mm Weight: 1450g | Size:475*475*215mm Weight: 1560g |
Size:450*550*165mm Weight: 1430g | ||
Size:585*585*115mm Weight: 2150g | Size:585*585*165mm Weight: 2300g | Size:585*585*215mm Weight: 2670g |

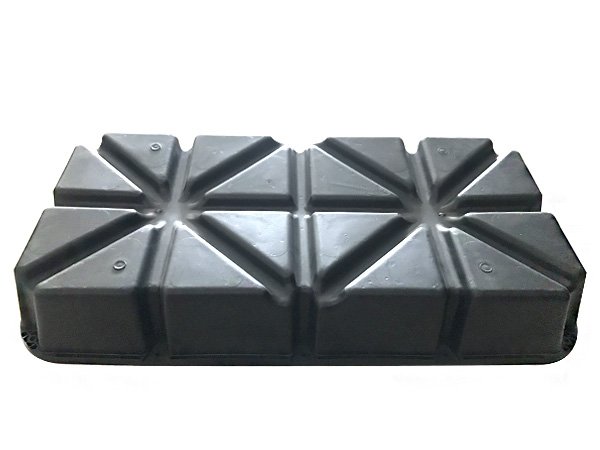

Size:390*780*115mm Weight: 2100g | Size:390*780*165mm Weight: 2250g | Size:390*780*215mm Weight: 2400g |
Avaiable Sizes: | Other Sizes can be customzied in our factory. |
We provide product design service & suggestion as customers' request.
We communicate & exchange the detail information with our customers to make a good mold design.
Manufacturing in-house, we send the mold processing photos and videos to customers.
We start plastic injection parts production after Customers confirm samples.
We can supply assembly service as customers' requests.
Available,such as screen printing, plating, Custom packaging and etc.
1.Over 10 years experience. Free Design, Free CAD and Free existing samples.
2.Factory price makes your cost transparent.

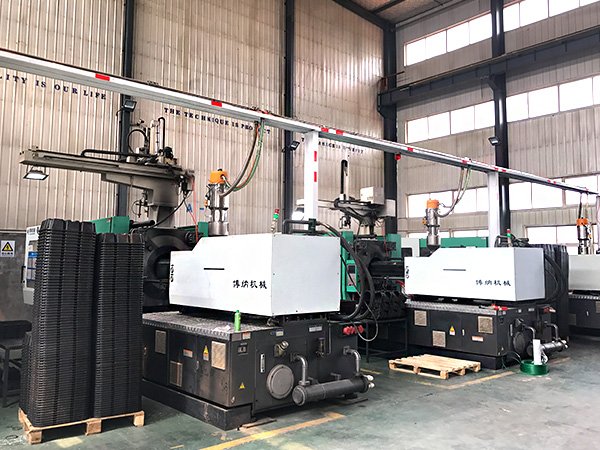

3.Our company has a professional, complete production equipment, Injection Machines total 20 sets, from 60T to 800T. With high precision and top quality. We offer strong engineering support with drawings or samples. Our professional sales and after-sales team , 24 hours on line, can reply your questions within 10 hours.
4.We have our own mould making production line, it’s better for us to control the quality, and improve our effective to shorten the production time.
5.We offer one-step service and after-service.
6.100% strict high quality control.
①Raw Material Control: we only use the finest and purest raw material from the worlds premier suppliers, all of which are subject to strict inward quality control checks. And we will test it before mass production.
②In-house QC : Ensuring the quality of our products is at the heart of everything we do. Each individual product is checked carefully by our in-line QC staff prior to being packed, and any that are found to be non compliant are removed and destroyed.
③we accept third part inspection and any other way to supervice the production.
1.Are you factory?
Yes, we are professional manufacturer. Welcome come to visit us and establish long term business relationship and friendship.
2.Which kind products can you do?
We do injection mould and mass production for plastic products. Most plastic products can be customized in our factory.
3.Which kind information need for quotation?
Samples photos with size or 2D3D design, the materials, the weight, the quantity, hot runner or cold runner, mould steel type, the more information the better.
4.I have no 3d drawing, how should I start the project?
You can send us a sample or tell us your detail ideas, we can help you for the 3d design.
5.How long will be the production finished?
Usually 40-45 days, 30-35 days for the mould
6.How about the samples?
We will produce samples and send them to you after the mould finished.
7.How about the modify for the mould?
You can tell us your comments about the samples after you received them. If there is any difference from the drawing, we will modify the mould for free and make new samples for you.
